Pre-Hung Door Frames Manufacturer in Ahmedabad, India

Pre-Hung Door Frame Systems — Manufactured by Pathframe Industries

A Pre-Hung Door Frame is a fully integrated door system — door leaf, frame, hinges, and lock preparation — factory-assembled by Pathframe Industries and shipped ready for drop-in installation. Compared to conventional frames requiring 4–6 hours of on-site carpentry per unit, Pathframe's pre-hung systems fit in 30–45 minutes with square-plumb-level precision built into the factory assembly. Ideal for high-volume residential societies, hotel chains, and commercial tower projects where installation speed and alignment accuracy drive project timelines.

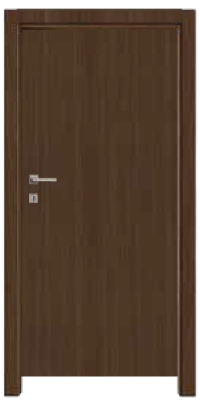

PHD 111

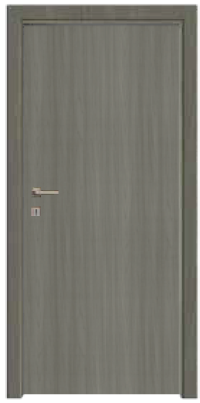

PHD 112

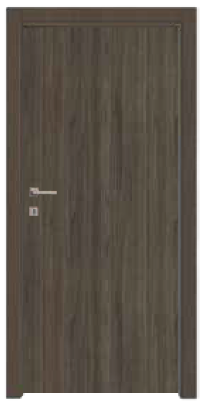

PHD 113

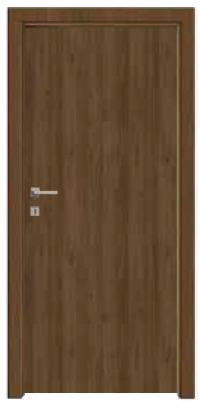

PHD 114

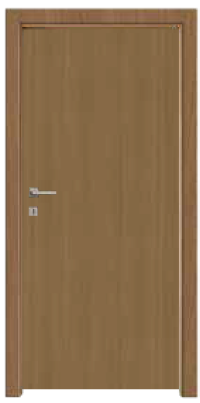

PHD 115

PHD 116

Components Included

Door leaf (WPC or customized)
Pre-attached hinges
Frame with integrated architraves
Lock slots and handle-ready sections
Perimeter sealing options available

Applications

Residential Buildings

Hotels

Commercial Building

Institutions Buildings

Support & Services

Pathframe provides a professional team for installation and post-sales service to make sure your Pre-Hung Door Frame performs at its best. Our technical experts guarantee the frame is set square, level, and aligned for optimal operation.

Why choose us?

Simplify your building process with Pathframe's Pre-Hung Door Frames. Engineered for efficiency and built for performance, these ready-to-install solutions bring unmatched convenience and reliability to any space. Partner with Pathframe for complete door systems designed to save time and deliver lasting value.

frequently asked questions

Answers That Build Clarity & Trust

A WPC (Wood-Plastic Composite) door frame is made from a scientifically engineered blend of recycled wood fibres and thermoplastic polymers. It looks like wood but is 100% waterproof, termite-proof, fire-retardant, and requires zero maintenance — the modern replacement for traditional teak or sal wood frames in Indian construction.

Yes — WPC outperforms wood on every technical parameter. It's 100% waterproof (wood absorbs moisture), termite-proof (wood is attacked within 5-7 years in Indian climate), dimensionally stable (wood warps in humidity), and zero-maintenance (wood needs annual polishing). Lifespan is 25+ years vs wood's typical 8-12 years, while pricing is comparable to mid-grade teak — making WPC a cost-neutral upgrade.

Yes. Pathframe's WPC frames are manufactured from 60-70% recycled plastic plus 30-40% wood fibre sourced from wood-industry waste, saving mature trees. Production is zero-emission, and end-of-life frames are 100% recyclable into new WPC. Projects using WPC frames qualify for GRIHA and LEED green-building credits.

Each Pathframe Pre-Hung unit ships as a complete factory-assembled system: door leaf, 3-side WPC frame, 3 pre-mortised hinges, lock cut-out, latch-plate cut-out, perimeter seal, and optional architrave trim on one or both sides. Door can be WPC, Moulded Panel, Decorative Veneered, or Laminated as per project spec.

Pathframe's Pre-Hung systems install in 30-45 minutes per unit vs 4-6 hours for conventional site-assembled frames. The factory-squared, factory-plumb assembly means the fitter only needs to level the unit in the opening, shim, and screw-fix — no carpentry. Large residential projects save 40-60% on installation labour cost and timeline.

Yes. Pathframe manufactures Pre-Hung systems to project-specific sizes for openings from 2'0" × 6'6" up to 4'0" × 8'0". For bulk orders of 100+ units, custom widths, heights, and right/left-hand swings are produced without premium pricing. Non-standard opening shapes (arched, double-leaf) are quoted separately.

Standard Pre-Hung systems ship with 3 SS-304 ball-bearing hinges (4" × 3" × 3 mm) pre-fitted. Lock preparation supports mortise locks, cylindrical locks, or smart locks. Magnetic door catches, hydraulic door closers, and peep-holes can be pre-fitted at factory for additional per-unit charge. All hardware is corrosion-rated for Indian humidity.

Pre-Hung Door Frame Systems — Factory-Assembled for Fast Installation
