WPC Door Frame Manufacturers

At Pathframe, we bring forward-thinking design and eco-conscious engineering to our range of WPC (Wood Plastic Composite) Door Frames. These frames are built for superior structural performance, aesthetic flexibility, and hassle-free maintenance, making them an ideal choice for modern construction needs.

Innovation That Lasts

WPC Door Frames are made from a scientifically engineered composite of wood fibers and recycled plastics. This blend offers the strength of traditional wood with added resistance to water, pests, and warping—problems that often compromise conventional materials.

Key Features & Benefits

100% Waterproof & Termite-Proof: Suitable for interiors and exteriors, including kitchens and bathrooms.
Dimensionally Stable: No warping, swelling, or bending due to seasonal or environmental changes.
Maintenance-Free: No painting or polishing required; retains its look for years.
Environmentally Friendly: Made using sustainable materials with zero emissions in manufacturing.
High Load Bearing Capacity: Ideal for heavy doors, ensuring long-term alignment and performance.
Machinable & Customizable: Easy to cut, drill, and fit standard hardware.

Available Sizes & Finishes

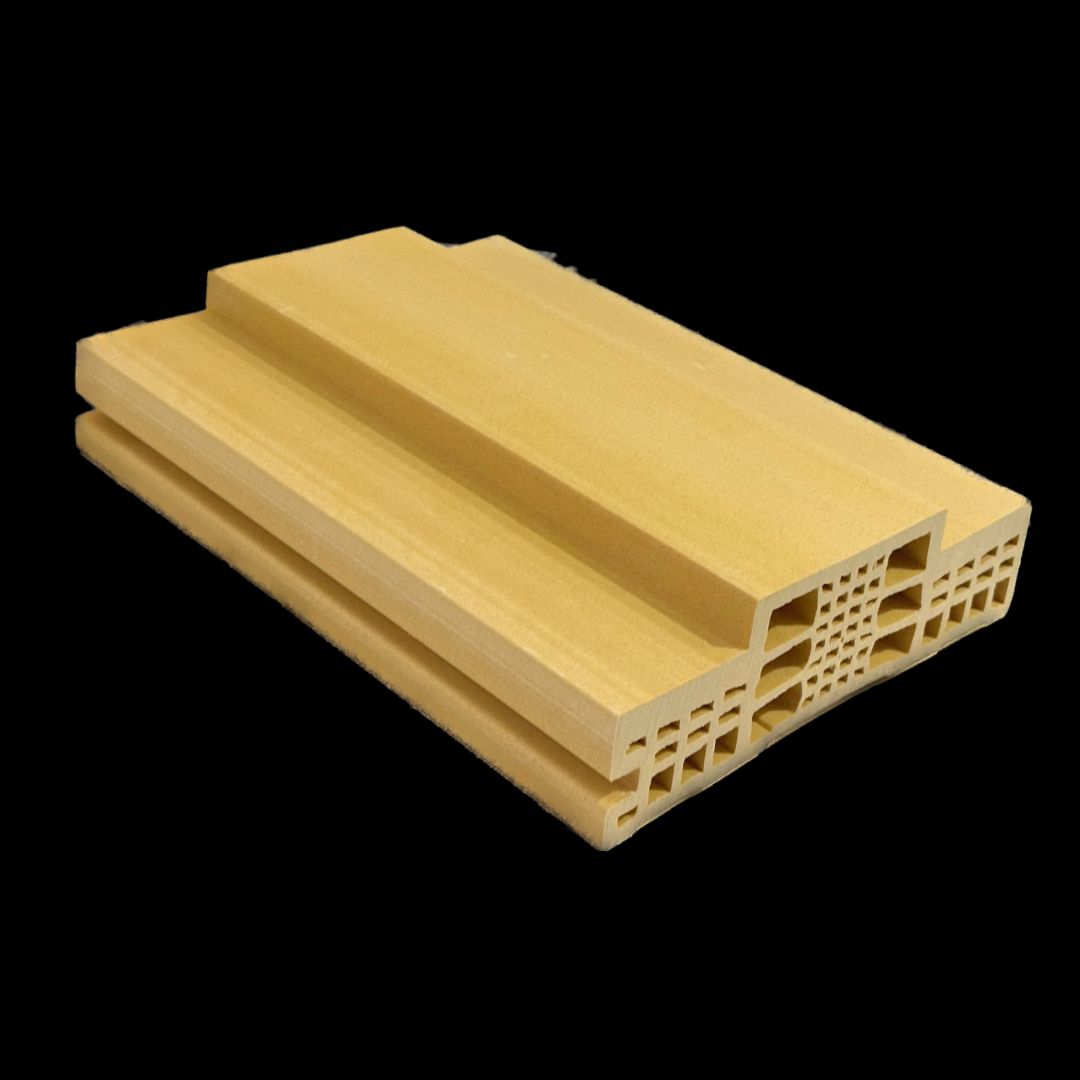

150 X 45 mm

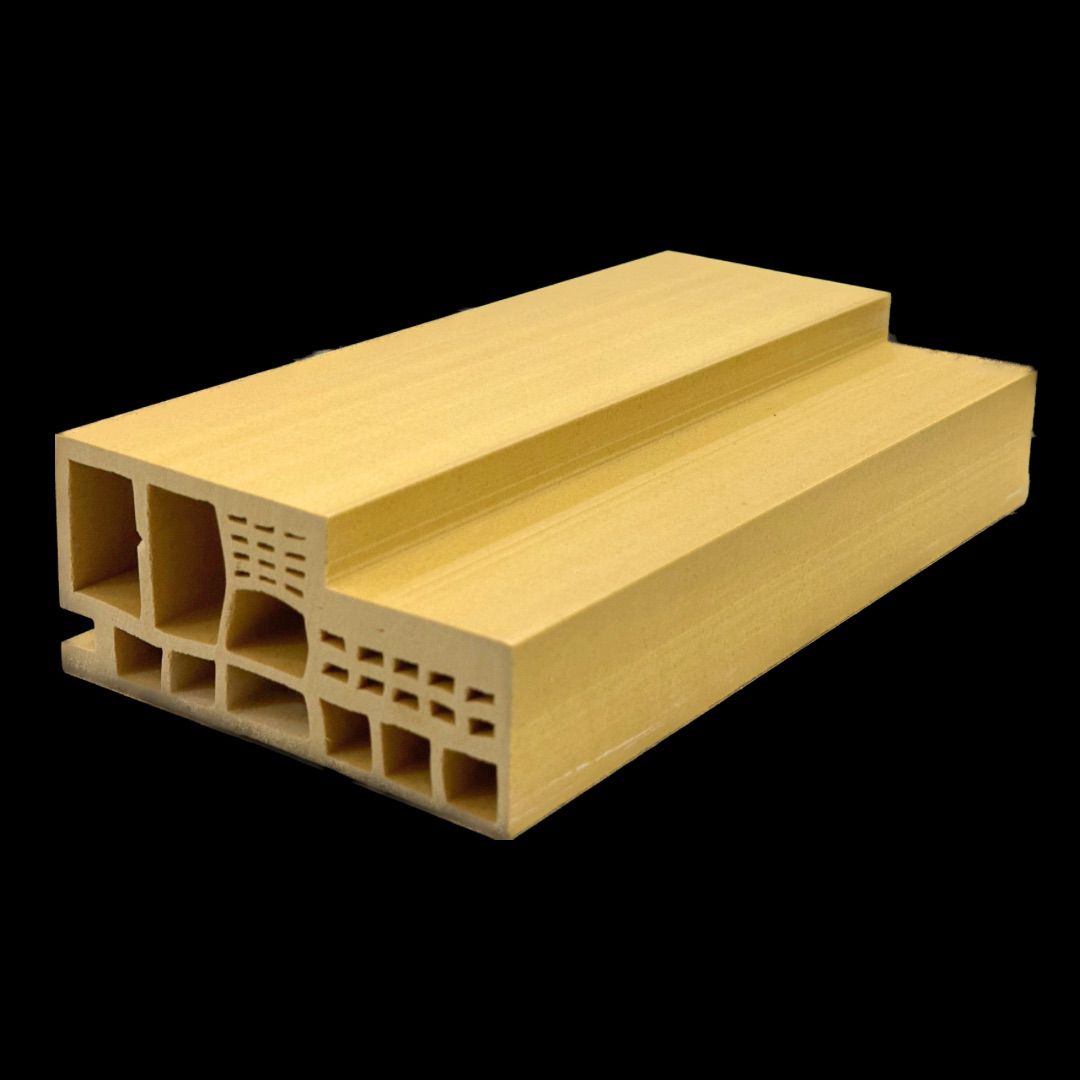

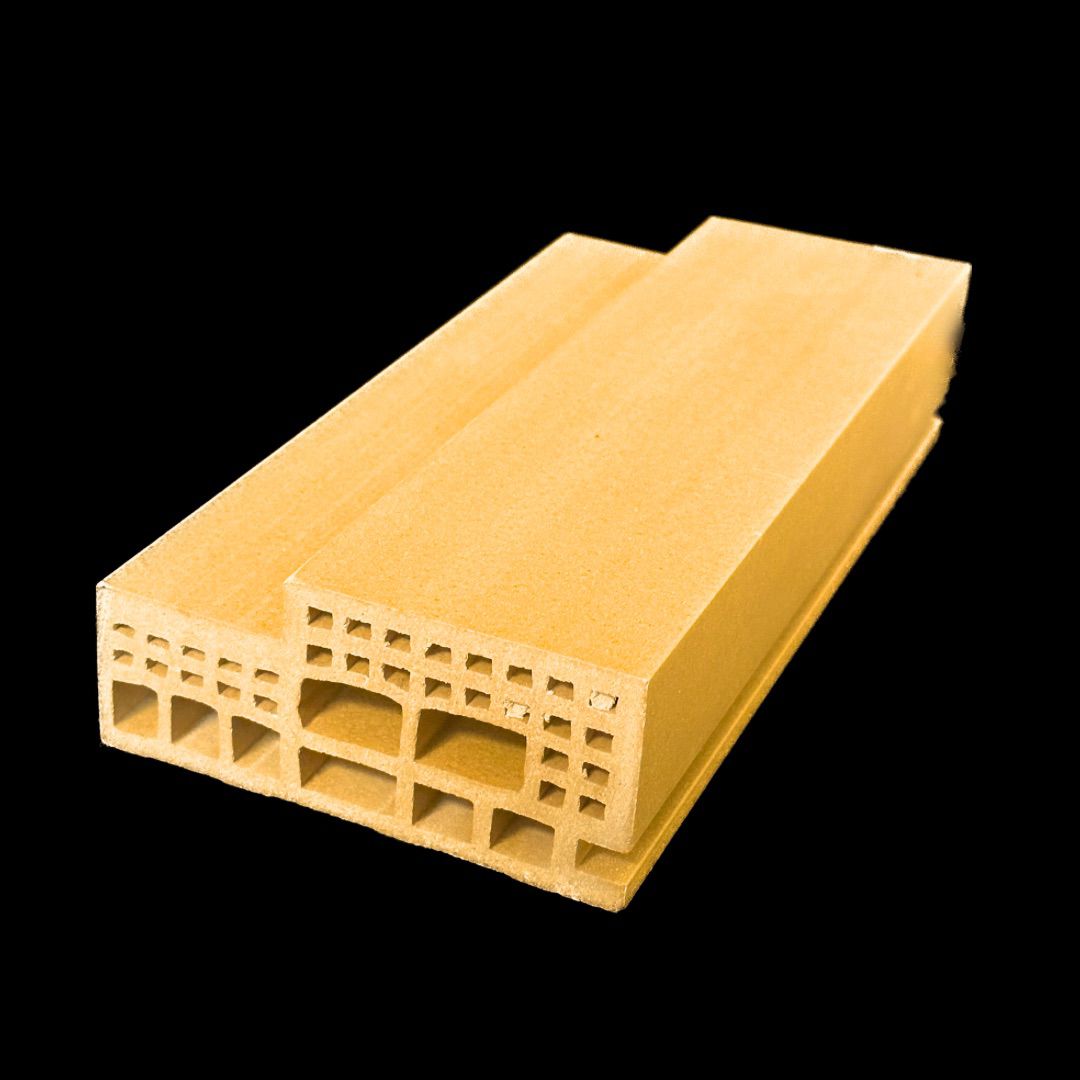

100 X 45 mm

100 X 45 mm

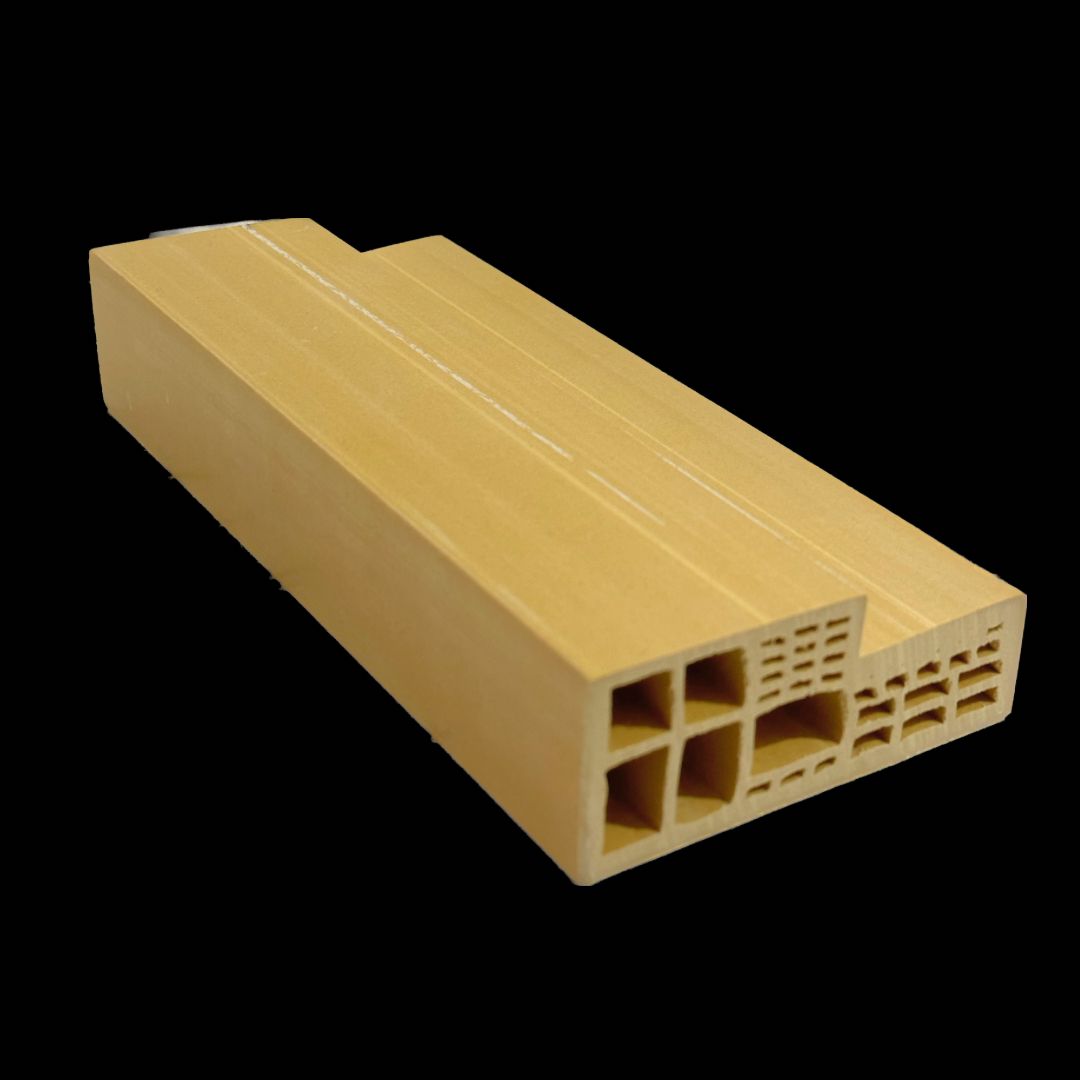

90 X 38 mm

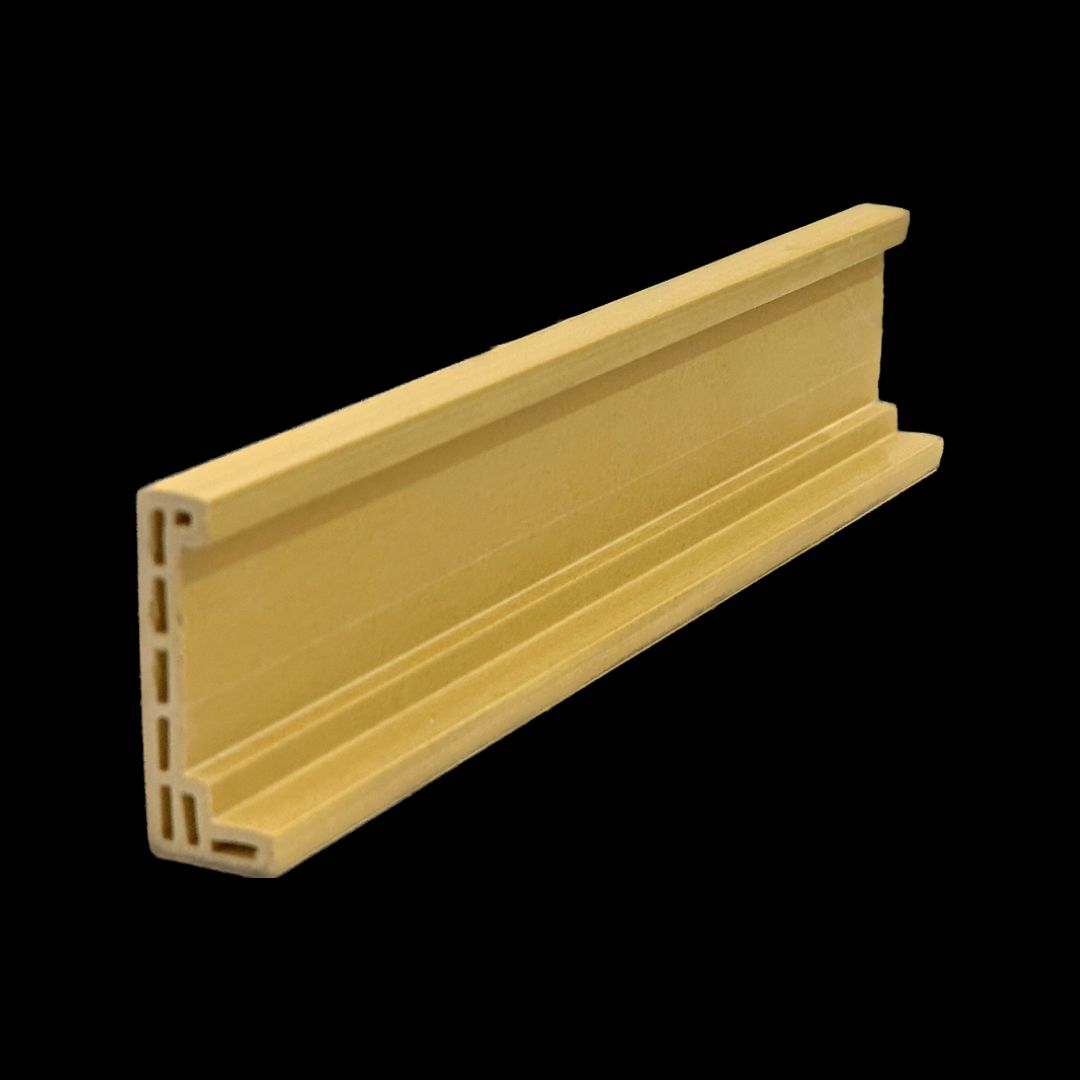

45 X 18 mm

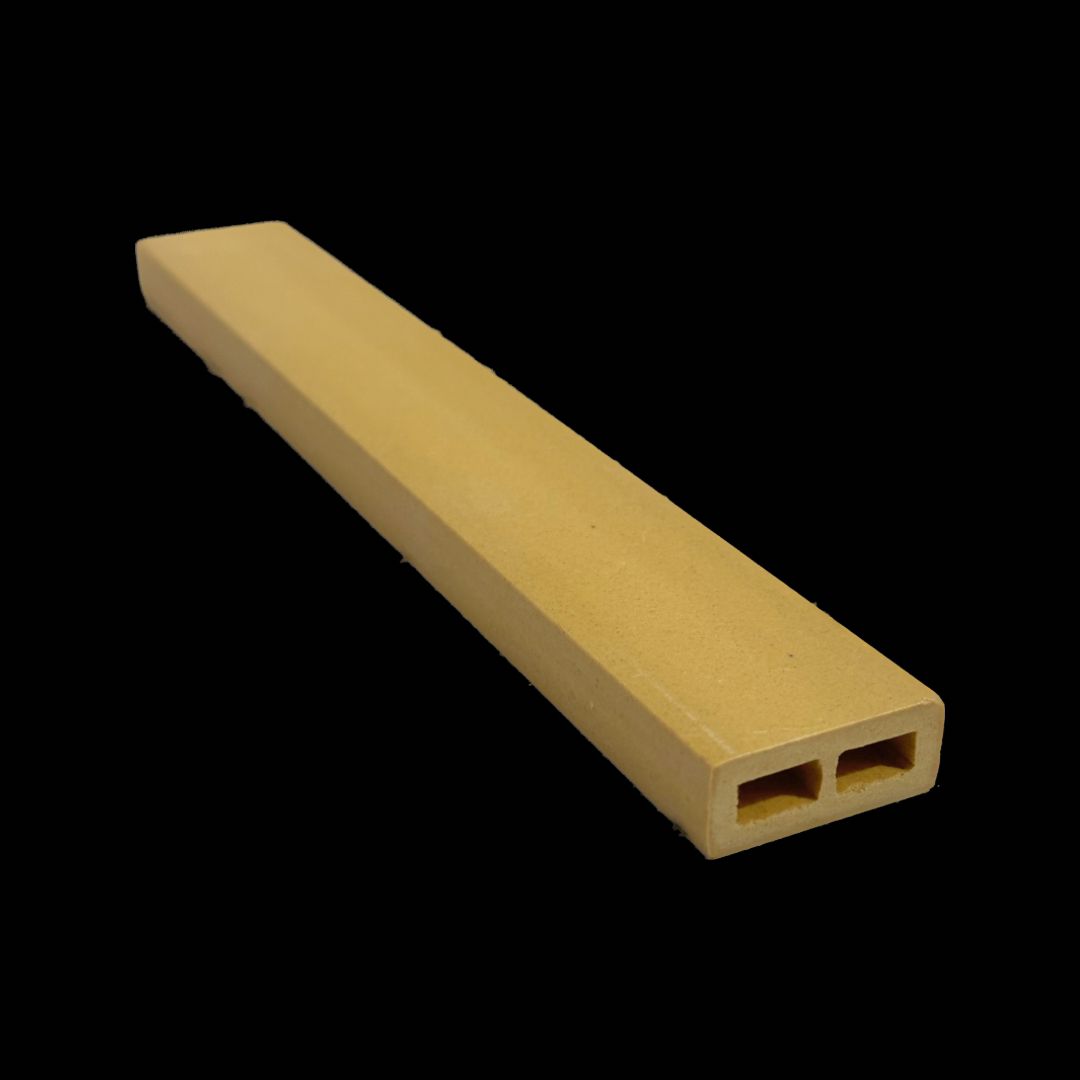

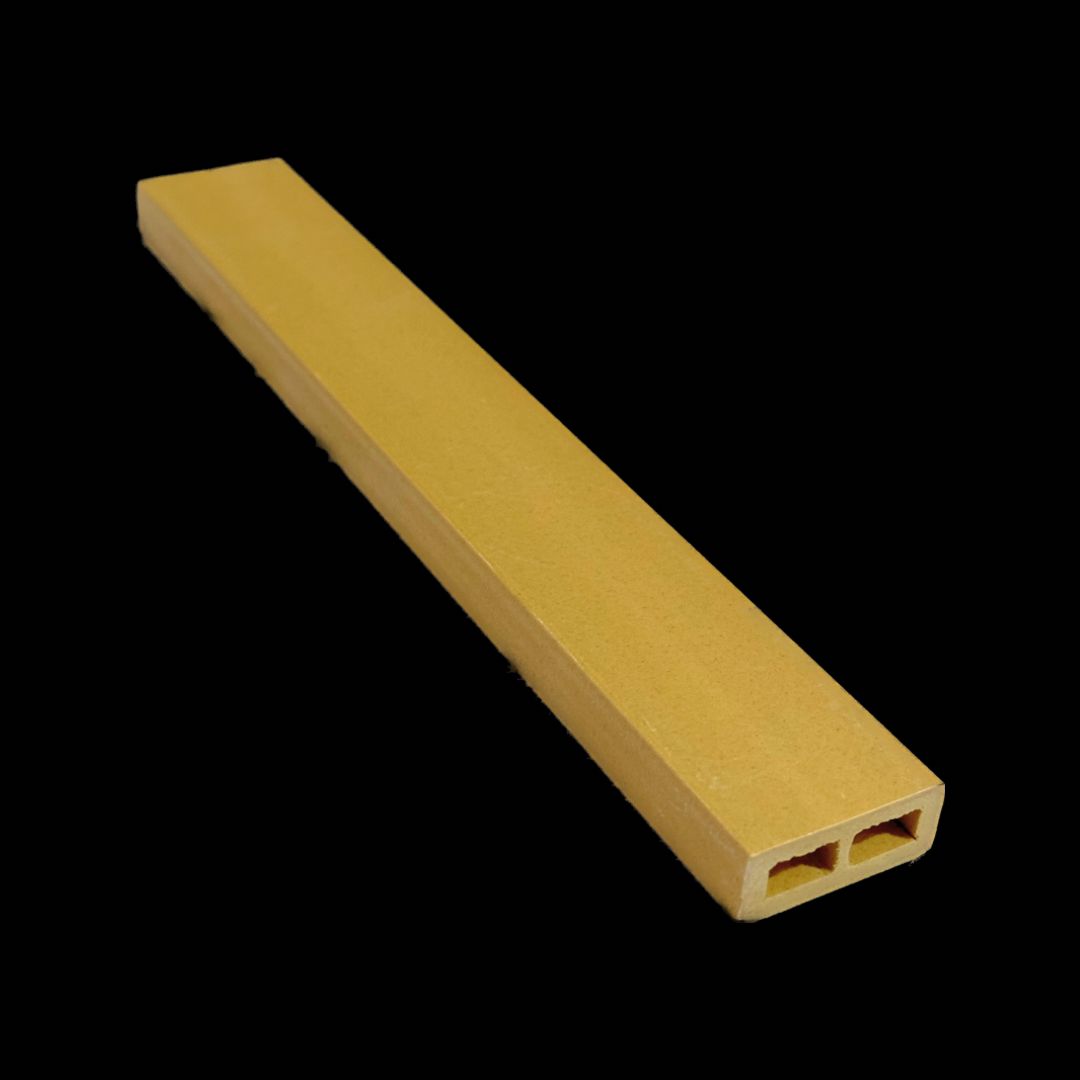

30 X 12 mm

30 X 12 mm

Where Can WPC Frames Be Used?

Residential Buildings

Hotels

Commercial Building

Institutions Buildings

Advantages of using WPC door frame

Good surface flatness, high strength, no bulking deformation
No formaldehyde, ammonia, benzene and other decorative pollutants
Antibacterial & alkali resistant
Cold and heat resistant, anti-ageing
Can be cleaned by water

Technical Specification

FR WPC DOOR FRAMES

TEST	TEST METHOD	RESULT OBTAINED
30 mins Fire Resistance	ASTM E 119, BS: 476 (Part – 20, 22) & IS : 3614 (Part – 2)	No smoke with stability, integrity and thermal insulation observed for 30 min
60 mins Fire Resistance	ASTM E 119, BS: 476 (Part – 20, 22) & IS : 3614 (Part – 2)	No smoke with stability, integrity and thermal insulation observed for 60 min
90 mins Fire Resistance	ASTM E 119, BS: 476 (Part – 20, 22) & IS : 3614 (Part – 2)	No smoke with stability, integrity and thermal insulation observed for 90 min
120 mins Fire Resistance	ASTM E 119, BS: 476 (Part – 20, 22) & IS : 3614 (Part – 2)	No smoke with stability, integrity and thermal insulation observed for 120 min

frequently asked questions

Answers That Build Clarity & Trust

A WPC (Wood-Plastic Composite) door frame is made from a scientifically engineered blend of recycled wood fibres and thermoplastic polymers. It looks like wood but is 100% waterproof, termite-proof, fire-retardant, and requires zero maintenance — the modern replacement for traditional teak or sal wood frames in Indian construction.

Yes — WPC outperforms wood on every technical parameter. It's 100% waterproof (wood absorbs moisture), termite-proof (wood is attacked within 5-7 years in Indian climate), dimensionally stable (wood warps in humidity), and zero-maintenance (wood needs annual polishing). Lifespan is 25+ years vs wood's typical 8-12 years, while pricing is comparable to mid-grade teak — making WPC a cost-neutral upgrade.

Yes. Pathframe's WPC frames are manufactured from 60-70% recycled plastic plus 30-40% wood fibre sourced from wood-industry waste, saving mature trees. Production is zero-emission, and end-of-life frames are 100% recyclable into new WPC. Projects using WPC frames qualify for GRIHA and LEED green-building credits.

Pathframe manufactures WPC door frames in 7 standard cross-section sizes: 150×45 mm, 100×45 mm, 90×38 mm, 75×35 mm for main frames, plus 45×18 mm and 30×12 mm for architrave trims. Lengths extend up to 7 feet. Custom cross-sections and lengths are produced for bulk project orders of 500+ frames.

Pathframe WPC frames offer superior screw-holding capacity of 110-140 kgf (pull-out test), comfortably exceeding standard wood frames and meeting IS 12817 specifications. This allows heavy-duty hinges, deadbolts, and door-closers to be mounted without inserts, making the frames suitable for tall or solid doors up to 40 kg leaf weight.

Yes. WPC door frames are fully machinable using standard carpentry tools — handsaw, circular saw, drill, router — just like wood. No special bits required. Dust generated is non-toxic (unlike MDF). On-site trimming, mortising for hinges, and lock-set drilling can be done by any trained fitter in 20-30 minutes per frame.

All standard door hardware works with Pathframe WPC frames: hydraulic and spring hinges, mortise locks, night latches, tower bolts, door closers, magnetic catches, and peep-holes. Hardware is screw-fixed directly — no inserts needed. Pathframe provides hardware-placement guidelines for bulk projects and technical datasheets for architects on request.
