Fire-Resistant WPC Door Frames Manufacturer in Ahmedabad, India

Fire-Resistant WPC Door Frame Manufacturers

Pathframe Industries is a certified manufacturer of Fire-Resistant (FR) WPC door frames in India, tested to IS 3614 Part 2, ASTM E 119, and BS 476 (Parts 20 & 22) standards. Our FR frames deliver certified 30, 60, 90, and 120-minute fire ratings and are used in hospitals, hotels, malls, schools, and high-rise buildings where NBC 2016 fire-code compliance is mandatory. Each frame is non-toxic, emits no smoke during fire, and carries a 25-year product warranty.

Available Sizes

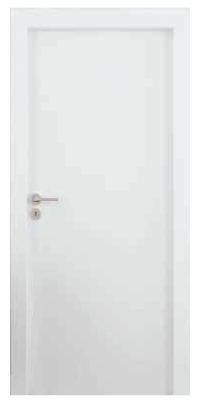

PAINTED

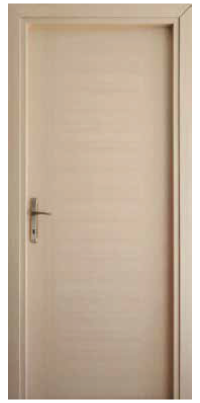

PVC FILM WRAPPING

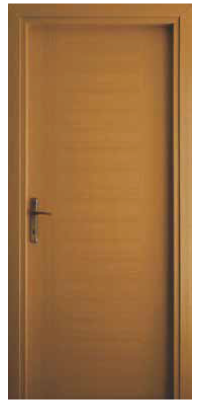

POLISHED

Fire Ratings & Test Certifications

30, 60, 90, and 120 Minutes Fire Resistance
Tested as per ASTM E 119, BS: 476 (Part 20 & 22), and IS: 3614 (Part 2)
Results: No smoke emission, structural integrity maintained, thermal insulation preserved for the entire rated duration

Core Features

Non-Toxic Composition: Emits no harmful gases or smoke
Moisture & Termite Proof: Suitable for high-risk zones such as staircases, kitchens, or corridors
Eco-Conscious Manufacturing: Zero-discharge facility with efficient waste handling
Stable & Strong: No bending, warping, or deformation over time
Low Maintenance: Long-lasting with minimal upkeep

Fire Resistance

Fire Resistance (FR) WPC Door Frames

Additionally our FR door frames are manufactured through a process that eliminates the emission of harmful smoke or gas in case of any incident.

These door frames are optimal for installation in homes and commercial spaces, readily exposed to or primarily dealing with fire and related heat.

30Minutes

➜

60Minutes

➜

90Minutes

➜

120Minutes

Sizes & Finishes

Available Sizes: Single Rebate – 100x45mm, 90x38mm, 75x35mm; Double Rebate – 150x45mm
Architrave Options: Front 45x18mm | Rear 30x12mm
Finishes: Painted, Polished, or PVC Film Wrapped

Technical Specification

SECTION SIZES AVAILABLE

FRAME	SIZE
Single rebate	100 x 45mm, 90 x 38mm, 75 x 35mm
Double rebate	150 x 45mm
Architrave	SIZE
Front	45 x 18mm
Rear	30 x 12mm

Applications

Residential Buildings

Hotels

Commercial Building

Institutions Buildings

frequently asked questions

Answers That Build Clarity & Trust

A WPC (Wood-Plastic Composite) door frame is made from a scientifically engineered blend of recycled wood fibres and thermoplastic polymers. It looks like wood but is 100% waterproof, termite-proof, fire-retardant, and requires zero maintenance — the modern replacement for traditional teak or sal wood frames in Indian construction.

Yes — WPC outperforms wood on every technical parameter. It's 100% waterproof (wood absorbs moisture), termite-proof (wood is attacked within 5-7 years in Indian climate), dimensionally stable (wood warps in humidity), and zero-maintenance (wood needs annual polishing). Lifespan is 25+ years vs wood's typical 8-12 years, while pricing is comparable to mid-grade teak — making WPC a cost-neutral upgrade.

Yes. Pathframe's WPC frames are manufactured from 60-70% recycled plastic plus 30-40% wood fibre sourced from wood-industry waste, saving mature trees. Production is zero-emission, and end-of-life frames are 100% recyclable into new WPC. Projects using WPC frames qualify for GRIHA and LEED green-building credits.

Pathframe Fire-Resistant WPC Door Frames are tested and certified at four fire-rating levels: 30, 60, 90, and 120 minutes. Each rating specifies how long the frame maintains structural integrity, thermal insulation, and smoke-seal in a real fire. 60-min is typical for residential towers, 90-min for hotels, and 120-min for hospitals and high-rise commercial buildings.

Yes. Pathframe FR door frames are tested to IS 3614 Part 2 (Indian standard for fire check doors), ASTM E 119 (USA), and BS 476 Parts 20 & 22 (UK). Test reports are issued by BIS-recognised laboratories and available on request for architects, fire consultants, and government tender submissions.

No. Pathframe FR frames use non-toxic flame-retardant chemistry that chars and self-extinguishes without emitting toxic smoke, hydrogen cyanide, or carbon monoxide — the leading cause of fire fatalities. This makes them safe for hospitals, hotels, and high-occupancy buildings where smoke inhalation is the primary evacuation risk.

Under NBC 2016 (National Building Code of India), hospitals, nursing homes, and high-rise buildings (above 15 m) require minimum 2-hour (120-minute) fire-rated door frames at staircase, corridor, and evacuation-route openings. Hotels and malls typically require 60-90 minute ratings. Pathframe's 120-min FR frames meet the highest NBC 2016 code for all these use cases.

Fire-Resistant WPC Door Frames — 60 / 120 Min Rated (IS 3614)
